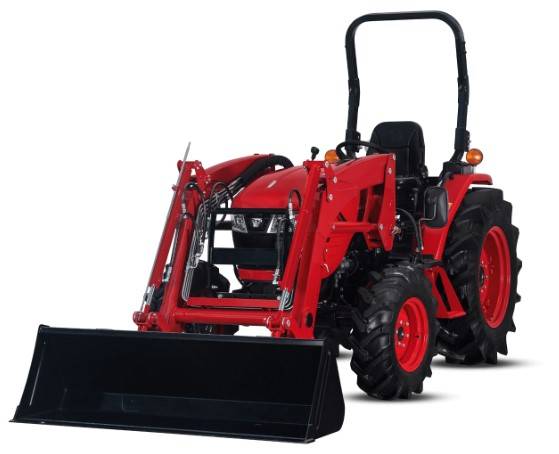

2024 TYM Tractors - Series 3 5520R

DETAILS

Type:

Compact Tractors

Year:

2024

Engine:

TYM A2300T3

Fuel Type:

Diesel

FEATURES

Additional Features

• PTO Type - Indpendent

• Steering - Hydrostatic

• Engine Displacement - 139.5 cu. in.

• Rated engine speed - 2600 rpm

• No. of Cylinders 4

• Lift control type - Position

• Category, 3-point hitch - I

• HYDRAULIC SYSTEM Pump type - Single Gear Pump

• Implement flow - 4.4 gpm

• Steering flow - 9.9 gm

• Total flow - 14.3. gpm

• Lift capacity - 3306 lb

• No. of standard remote valves - Optional (Up to 4)

• Engine - Air cleaner - Dry Element

• Engine Alternator - R: 12V, 50A

• Max. Traveling Speed - 16 mph

• Clutch - Dry Single Type (N/A)

• PTO Rear - 584 rpm

• PTO control - Wet, Multi-disc

• Capacities - Coolant - 6.2 qt

• Crankcase capacity - 4.8 qt

• Transmission/Hydraulics system capacity - 10.3 gal

• Front Axle capacity - 1.8 qt

• Height to top of ROPS - 98.4 in.

• Min. ground clearance 15.5 in.

• Min. turn radius without brakes - 9.2 ft.

• Weight with ROPS - 3836 lb

COMMENTS

Upgrades for the Series 3, 5520 Complement the capabilities of your TYM tractor with compatible options and accessories. Options Tire R1 Agricultural Tires F 9.5-16 R 13.6-26 Tire R3 Turf Tires F 27x8.5-15 R 41x14-20 Tire R3 Turf Tires F 29x12.5-15 R 44x18-20 Tire R4 Industrial Tires F 12-16.5 R 17.5Lx24

Contact Us For Pricing

Stock #: 4777

VIN:

You might be interested in...

2024 TYM Tractors - Series 3 T454

2024 TYM Tractors - Series 2 4815

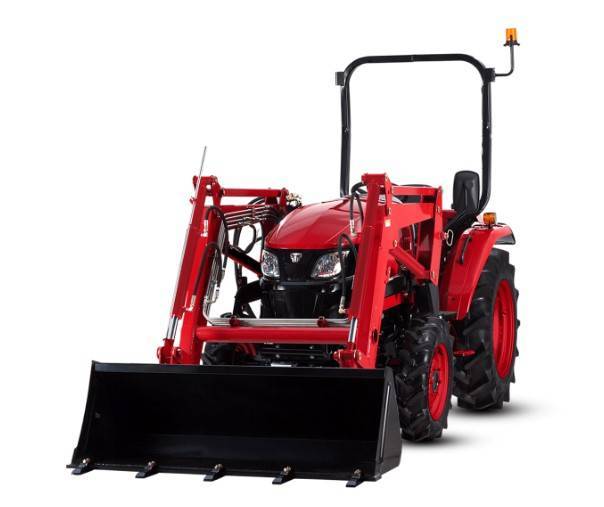

2024 TYM Tractors - Series 2 T474
