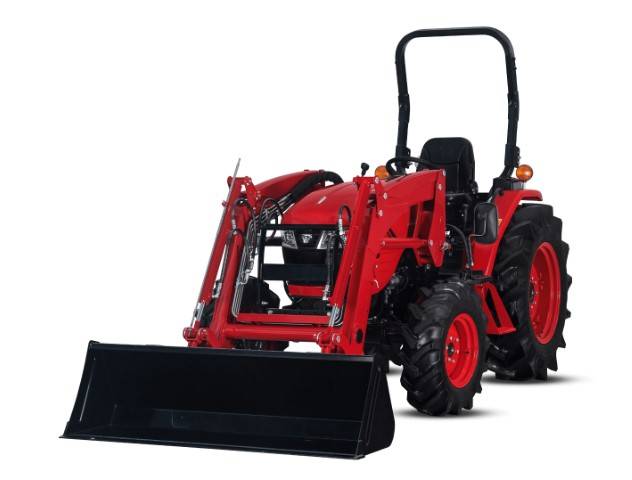

2024 TYM Tractors - Series 3 4820R

DETAILS

Type:

Compact Tractors

Year:

2024

Engine:

TYM A2300N2

Fuel Type:

Diesel

FEATURES

Additional Features

• Min. turn radius without brakes - 9.2 ft.

• Min. ground clearance 15.5 in.

• Height to top of ROPS - 98.4 in.

• Front Axle capacity - 1.8 qt

• Transmission/Hydraulics system capacity - 10.3 gal

• Crankcase capacity - 4.5 qt

• PTO Type - Indpendent

• PTO control - Wet, Multi-Disc

• PTO Rear - 584 rpm

• Steering - Hydrostatic

• Max. Traveling Speed - 16 mph

• Engine Alternator - R: 12V, 50A

• Engine - Air cleaner - Dry Element

• No. of standard remote valves - (optional up to 4)

• Lift control type - Position

• Lift capacity - 3306 lb

• Category, 3-point hitch - I

• HYDRAULIC SYSTEM Pump type - Single Gear Pump

• Weight with ROPS - 3831 lb

• Implement flow - 4.4 gpm

• Steering flow - 9.9 gm

• Total flow - 14.3 gpm

• No. of Cylinders 4

• Rated engine speed - 2600 rpm

• Engine Displacement - 139.5 cu. in.

• Clutch - Dry Single Plate (N/A)

• Capacities - Coolant - 8.3 qt

COMMENTS

Upgrades for the Series 3, 4820 Complement the capabilities of your TYM tractor with compatible options and accessories. Options Tire R1 Agricultural Tires F 9.5-16 R 13.6-26 Tire R3 Turf Tires F 27x8.5-15 R 41x14-20 Tire R3 Turf Tires F 29x12.5-15 R 44x18-20 Tire R4 Industrial Tires F 12-16.5 R 17.5Lx24

Contact Us For Pricing

Stock #: 4763
