2024 TYM Tractors - Series 3 3620R

DETAILS

Type:

Compact Tractors

Year:

2024

Engine:

TYM A1700N2

Fuel Type:

Diesel

FEATURES

Additional Features

• Category, 3-point hitch - I

• Lift control type - Position

• Steering - Hydrostatic

• Clutch - Dry Single Plate

• PTO Type - Indpendent

• Min. turn radius without brakes - 9.2 ft.

• Min. ground clearance 15.5 in.

• Height to top of ROPS - 98.4 in.

• Front Axle capacity - 1.8 qt

• Transmission/Hydraulics system capacity - 10.3 gal

• Crankcase capacity - 4.5 qt

• Capacities - Coolant - 6 qt

• PTO control - Wet, Multi-Disc

• PTO Rear - 584 rpm

• Max. Traveling Speed - 16 mph

• Engine Alternator - R: 12V, 50A

• Engine - Air cleaner - Dry Element

• Engine Displacement - 104.5 cu. in.

• Rated engine speed - 2500 rpm

• No. of standard remote valves - (optional up to 4)

• Lift capacity - 3306 lb

• Steering flow - 8 gm

• Implement flow - 4.3 gpm

• HYDRAULIC SYSTEM Pump type - Single Gear Pump

• Weight with ROPS - 3754 lb

• No. of cylinders - 3

• Total flow - 12.3 gpm

COMMENTS

Upgrades for the Series 3, 3620 Complement the capabilities of your TYM tractor with compatible options and accessories. Options Tire R1 Agricultural Tires F 9.5-16 R 12.4-28 Tire R3 Turf Tires F 27x8.5-15 R 41x14-20 Tire R3 Turf Tires F 29x12.5-15 R 44x18-20 Tire R4 Industrial Tires F 10x16.5 R 420/70×24

Contact Us For Pricing

Stock #: 4760

VIN:

You might be interested in...

2024 TYM Tractors - Series 3 T554C

2024 TYM Tractors - Series 2 4215

2024 TYM Tractors - Series 2 2515R

2024 TYM Tractors - Series 3 4820R

2024 TYM Tractors - Series 2 T394

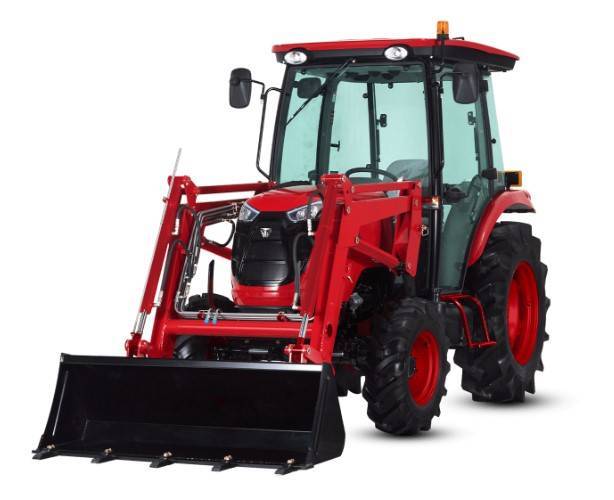

2024 TYM Tractors - Series 3 T574C
