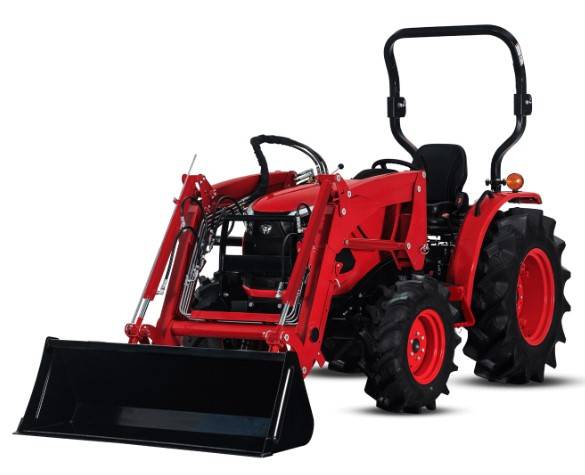

2024 TYM Tractors - Series 2 3515R

DETAILS

Type:

Compact Tractors

Year:

2024

Engine:

TYM A1700N2 IDI

Fuel Type:

Diesel

FEATURES

Additional Features

• HYDRAULIC SYSTEM Pump type Single Gear Pump

• Implement flow - 4.3 gpm

• Steering flow - 8 gpm

• Total flow - 12.3 gpm

• Category, 3-point hitch - I

• Lift control type - Position

• No. of standard remote valves - Optional (up to 4)

• Engine Cylinders - 3

• Rated engine speed - 2600 rpm

• Engine Displacement - 104.5 cu. in.

• Engine - Air cleaner - Dry Element

• Engine Alternator - 12V, 50A

• Max. Traveling Speed - 14.4 mph

• Steering - Hydrostatic

• Clutch - Dry Single PLate

• PTO Rear - 560 rpm

• PTO control - Wet, Multi-disc

• PTO Type - Indpendent

• Crankcase capacity - 4.5 qt

• Transmission/Hydraulics system capacity - 8.9 gal

• Front Axle capacity - 1.7 qt

• Height to top of ROPS - 97.3 in.

• Min. ground clearance 14.4 in.

• Weight with ROPS - 3183 lb

• Min. turn radius without brakes - 8.5 ft

• Capacities - Coolant - 5.28 qt

• Lift capacity - 3306 lb

COMMENTS

Upgrades for the Series 2, 3515 Complement the capabilities of your TYM tractor with compatible options and accessories. Options Tire R1 Agricultural Tires F 8.0-16 R 12.4-24 Tire R4 Industrial Tires F 28x8.50-15 R 43x16.00-20

Contact Us For Pricing

Stock #: 4740
